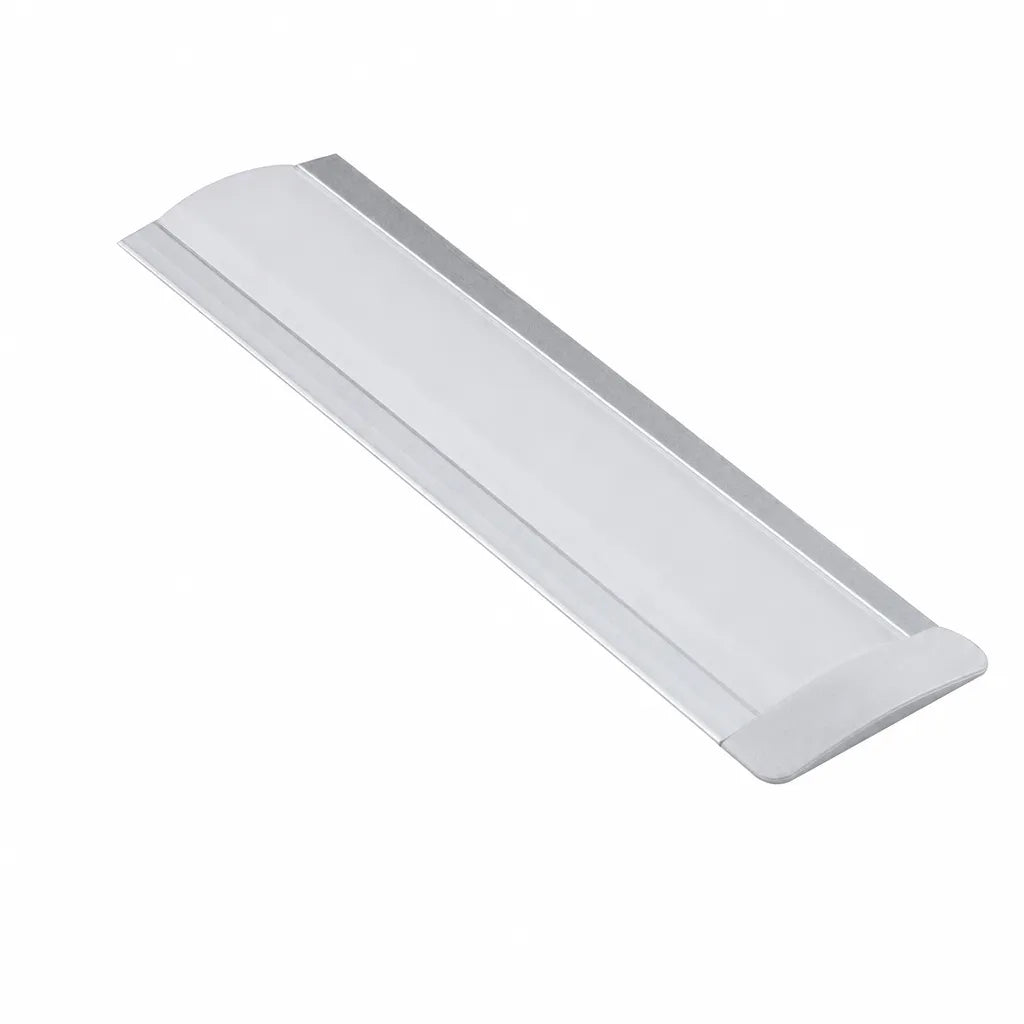

Recessed Aluminum Channel with Flange (12.5mm)
Recessed Aluminum Channel with Flange (12.5mm)
Skip to product information
Features
A recessed profile for a built-in, architectural finish. This channel sits inside a routed groove or cutout, and its flanges cover the cut edge so the light line looks clean and intentional. The aluminum body pulls heat away from the tape, which helps protect performance and lifespan. The snap-in diffuser softens hot spots into a smooth, continuous glow.
Built for new construction, millwork, stair treads, and cabinetry where the light should sit flush with the surface rather than on top of it.

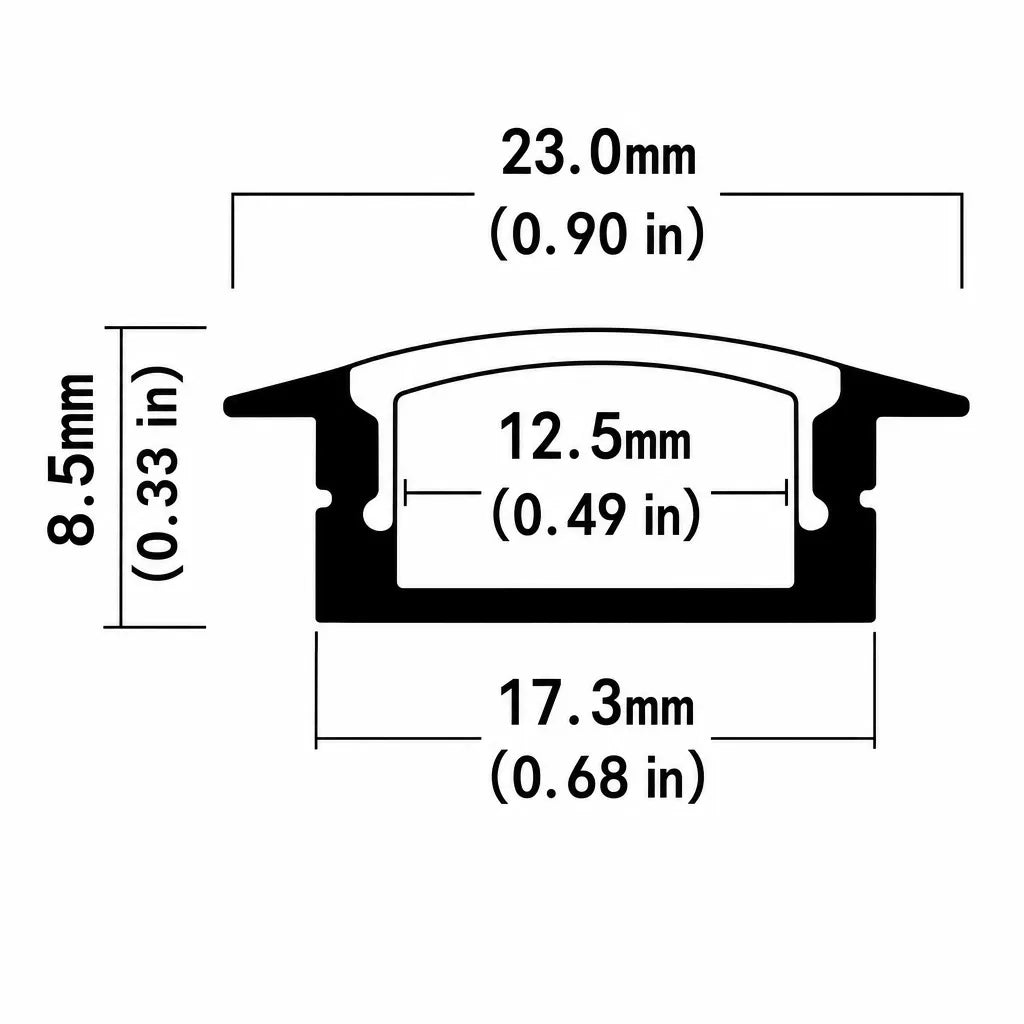

- 12.5mm channel for standard-width tape
- Recessed mount with flanges that hide the cut edge
- Aluminum construction for heat dissipation
- Snap-in diffuser: frosted
- Includes end caps and mounting clips
- Length: 3.28 ft / 1 m, field-cuttable
- Finish: anodized silver aluminum
| Length | 3.28 ft (1m) |
| Safety Rating | UL Listed, CE, RoHS Compliant |
| PCB Width | 0.49 in (Max 12.5mm) |
| Warranty | 5 years |
| Model No. | 1245 |
|---|---|
| Description | Recessed Aluminum Channel with Flange (12.5mm) |
| Mount | Recessed (with mounting flanges) |
| PCB Width | 0.49 in (Max 12.5mm) |
| Aluminum | 1m/pcs |
| PC Cover | Milky (frosted) polycarbonate, 1m/pcs |
| Finish | Silver aluminum |
| End Caps | 2pcs/m |
| Clip | 2pcs/m |
