Flexible Bendable Surface Mount Aluminum Channel (13mm)
Features

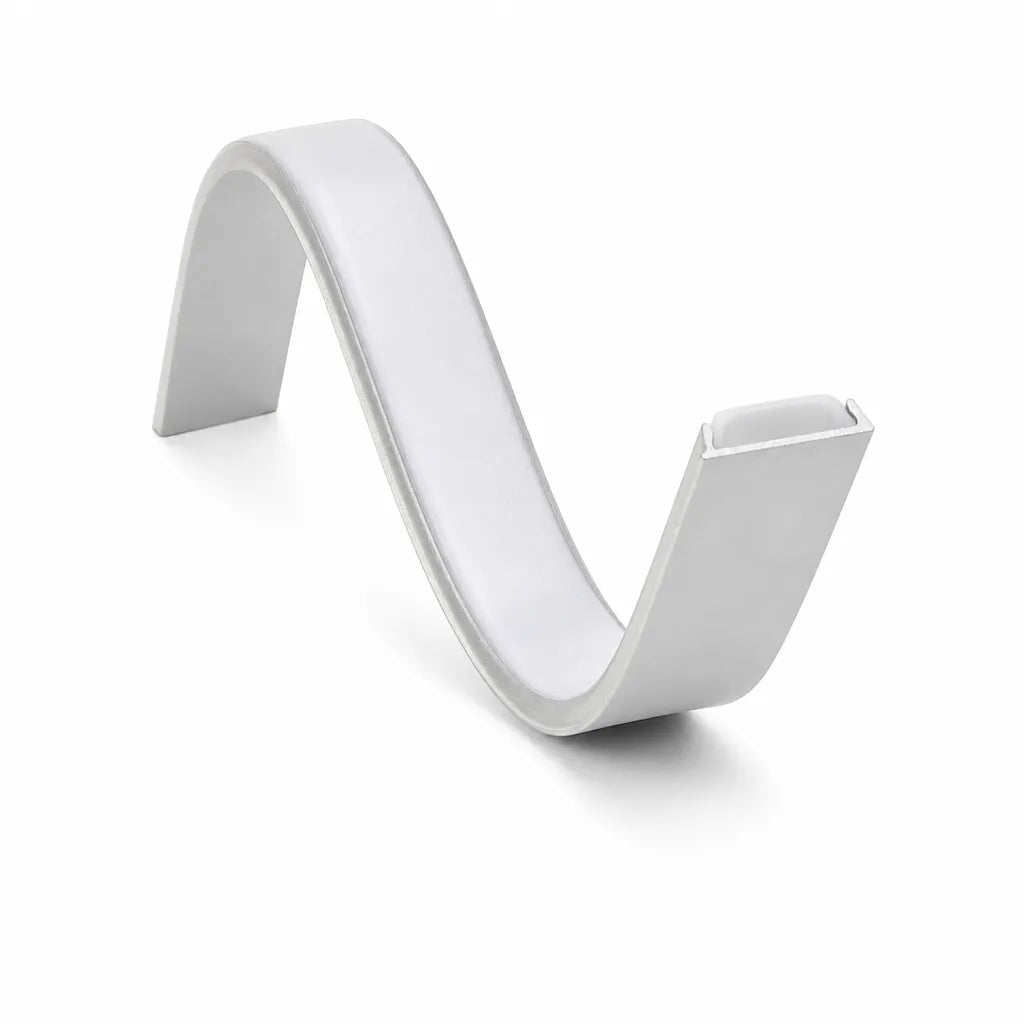

A bendable profile for curves and contours. This surface mount channel can be shaped by hand to follow arches, rounded soffits, curved cabinetry, and other non-linear details, while still giving the tape a protected, finished housing. The aluminum body pulls heat away from the tape, which helps protect performance and lifespan. The snap-in diffuser softens hot spots into a smooth, continuous glow.
It mounts directly to the surface with clips or screws, with no cutouts or pocketing required, so curved runs can be added without custom fabrication.
- 13mm channel for standard-width tape
- Bendable extrusion for curved runs
- Aluminum construction for heat dissipation
- Snap-in diffuser: frosted
- Includes end caps and mounting clips
- Length: 3.28 ft / 1 m, field-cuttable
- Finish: anodized silver aluminum
| Length | 3.28 ft (1m) |
| Safety Rating | UL Listed, CE, RoHS Compliant |

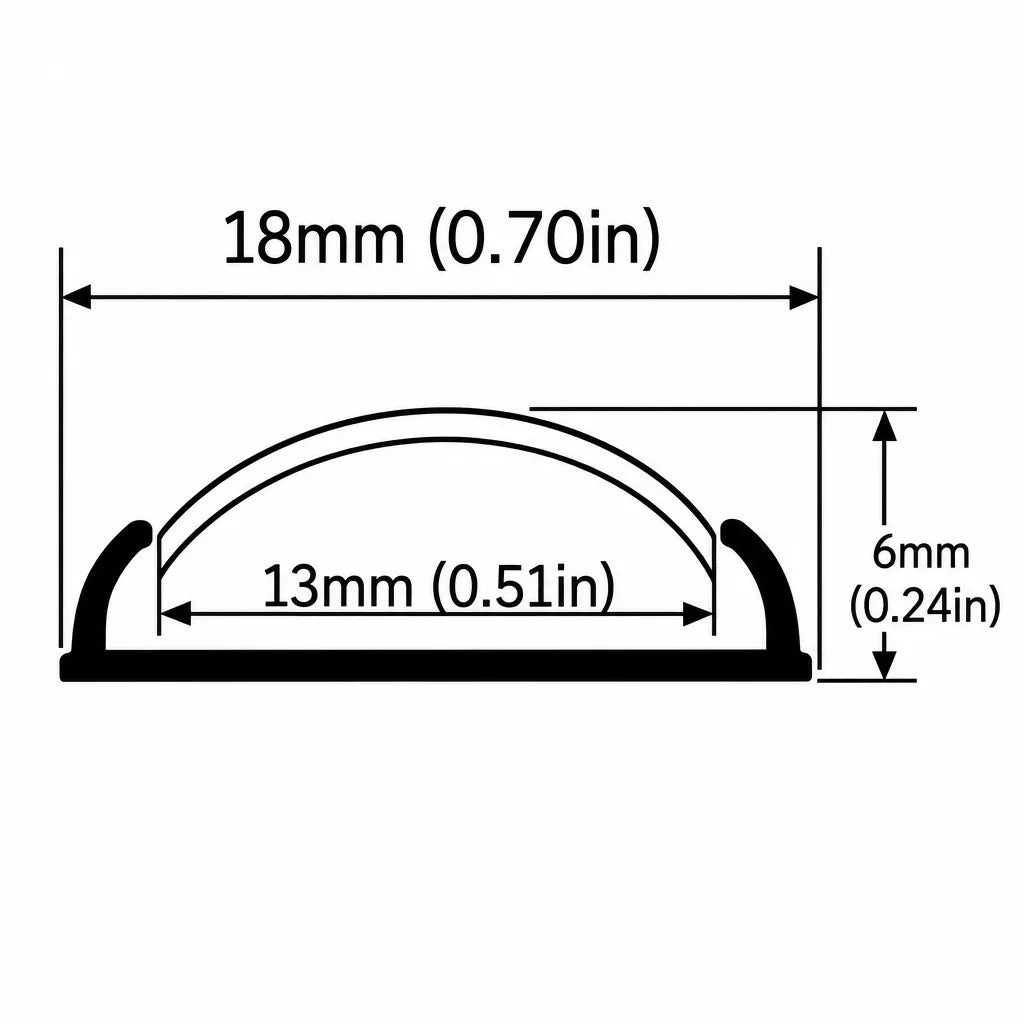

| PCB Width | 0.51 in (Max 13mm) |
| Warranty | 5 years |
| Model No. | 1246 |
|---|---|
| Description | Flexible Bendable Surface Mount Aluminum Channel (13mm) |
| Mount | Surface (bendable extrusion) |
| PCB Width | 0.51 in (Max 13mm) |
| Aluminum | 1m/pcs |
| PC Cover | Milky (frosted) polycarbonate, 1m/pcs |
| Finish | Silver aluminum |
| End Caps | 2pcs/m |
| Clip | 2pcs/m |
